拥有自主出口经营权、CE认证、ISO9001:2000认证

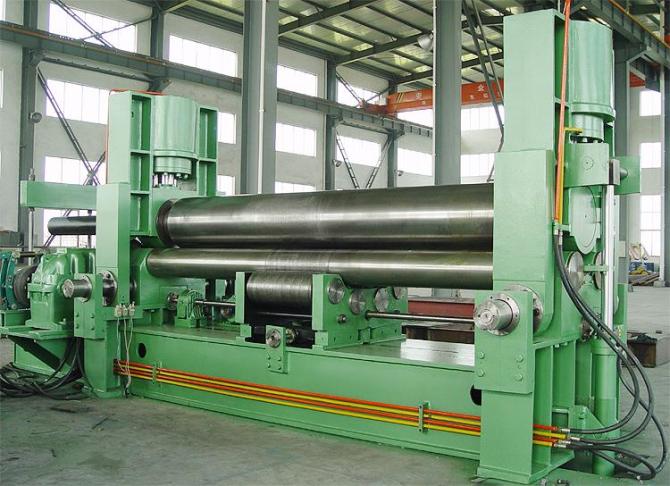

小型上辊万能式卷板机技术参数：
规格型号 |
上辊加压力 (Tons) |
最大板厚 |
板 幅 (mm) |
上辊直径 (mm) |
下辊直径 (mm) |
中心距 (mm) |
电动机(kw) |
|||
端曲 (mm) |
中央 (mm) |
驱动用 |
油压用 |
移动用 |
||||||
W11S-8×1500 |
25 |
6 |
8 |
1500 |
175 |
125 |
160 |
3 |
2.2 |
0.75 |
W11S-6×2000 |
25 |
4.5 |
6 |
2000 |
195 |
125 |
160 |
3 |
2.2 |
0.75 |
W11S-8.5×1500 |
30 |
6.5 |
8.5 |
1500 |
185 |
125 |
160 |
3 |
2.2 |
0.75 |
W11S-7.5×2000 |
30 |
5.5 |
7.5 |
2000 |
205 |
125 |
160 |
3 |
2.2 |
0.75 |
W11S-10×1500 |
37 |
8 |
10 |
1500 |
205 |
135 |
180 |
4 |
2.2 |
0.75 |
W11S-8.5×2000 |
37 |
6.5 |
8.5 |
2000 |
220 |
135 |
180 |
4 |
2.2 |
0.75 |
W11S-8×2500 |
37 |
5.7 |
8 |
2500 |
235 |
135 |
180 |
4 |
2.2 |
0.75 |
W11S-11×1500 |
45 |
9 |
11 |
1500 |
215 |
135 |
180 |
4 |
2.2 |
0.75 |
W11S-10×2000 |
45 |
7.5 |
10 |
2000 |
235 |
135 |
180 |
4 |
2.2 |
0.75 |
W11S-9×2500 |
45 |
6.5 |
9 |
2500 |
245 |
135 |
180 |
4 |
2.2 |
0.75 |
W11S-11×2000 |
55 |
9 |
11 |
2000 |
245 |
145 |
200 |
5.5 |
4 |
0.75 |
W11S-10.5×2500 |
55 |
8 |
10.5 |
2500 |
255 |
145 |
200 |
5.5 |
4 |
0.75 |
W11S-9.5×3000 |
55 |
7 |
9.5 |
3000 |
275 |
145 |
200 |
5.5 |
4 |
0.75 |
W11S-12×2000 |
65 |
10 |
12 |
2000 |
250 |
145 |
200 |
5.5 |
4 |
0.75 |
W11S-11.5×2500 |
65 |
9 |
11.5 |
2500 |
265 |
145 |
200 |
5.5 |
4 |
0.75 |
W11S-10.5×3000 |
65 |
8 |
10.5 |
3000 |
280 |
145 |
200 |
5.5 |
4 |
0.75 |
W11STNC-8×1500 -- |
同上 |
|||||||||
W11STNC-10.5×3000 W11ST&BNC-8×1500 -- W11ST&BNC-10.5×3000 |
同上 |
|||||||||
中型上辊万能式卷板机技术参数：
|
规格型号
|
上辊加压力
(Tons) |
最大板厚
|
板 幅
(mm) |
上辊直径
(mm) |
下辊直径
(mm) |
中心距
(mm) |
电动机(kw)
|
|||
|
端曲
(mm) |
中央
(mm) |
驱动用
|
油压用
|
移动用
|
||||||
|
W11S-15×2000
|
75
|
12
|
15
|
2000
|
255
|
150
|
245
|
7.5
|
4
|
1.1
|
|
W11S-14×2500
|
75
|
10
|
14
|
2500
|
270
|
150
|
245
|
7.5
|
4
|
1.1
|
|
W11S-13×3000
|
75
|
9
|
13
|
3000
|
290
|
150
|
245
|
7.5
|
4
|
1.1
|
|
W11S-17×2500
|
100
|
13
|
17
|
2500
|
300
|
165
|
270
|
15
|
5.5
|
1.5
|
|
W11S-15×3000
|
100
|
11
|
15
|
3000
|
325
|
165
|
270
|
15
|
5.5
|
1.5
|
|
W11S-20×2500
|
130
|
16
|
20
|
2500
|
330
|
180
|
300
|
15
|
5.5
|
2.2
|
|
W11S-18×3000
|
130
|
14
|
18
|
3000
|
350
|
180
|
300
|
15
|
5.5
|
2.2
|
|
W11S-22×2500
|
160
|
18
|
22
|
2500
|
360
|
200
|
330
|
18.5
|
7.5
|
2.2
|
|
W11S-20×3000
|
160
|
16
|
20
|
3000
|
375
|
200
|
330
|
18.5
|
7.5
|
2.2
|
|
W11S-18×3500
|
160
|
14
|
18
|
3500
|
390
|
200
|
330
|
18.5
|
7.5
|
2.2
|
|
W11S-24×2500
|
190
|
21
|
24
|
2500
|
380
|
220
|
360
|
22
|
7.5
|
4
|
|
W11S-22×3000
|
190
|
19
|
22
|
3000
|
400
|
220
|
360
|
22
|
7.5
|
4
|
|
W11S-19×3500
|
190
|
16
|
19
|
3500
|
410
|
220
|
360
|
22
|
7.5
|
4
|
|
W11S-29×2500
|
230
|
25
|
29
|
2500
|
410
|
235
|
380
|
30
|
11
|
4
|
|
W11S-27×3000
|
230
|
21
|
25
|
3000
|
425
|
235
|
380
|
30
|
11
|
4
|
|
W11S-25×3500
|
230
|
21
|
25
|
3500
|
440
|
235
|
380
|
30
|
11
|
4
|
|
W11S-33×2500
|
270
|
28
|
33
|
2500
|
430
|
250
|
400
|
30
|
11
|
4
|
|
W11S-30×3000
|
270
|
25
|
30
|
3000
|
450
|
250
|
400
|
30
|
11
|
4
|
|
W11S-28×3500
|
270
|
23
|
28
|
3500
|
470
|
250
|
400
|
30
|
11
|
4
|
|
W11S-25×4000
|
270
|
20
|
25
|
4000
|
490
|
250
|
400
|
30
|
11
|
4
|
|
W11S-36×2500
|
320
|
30
|
36
|
2500
|
460
|
260
|
420
|
37
|
15
|
5.5
|
|
W11S-32×3000
|
320
|
28
|
32
|
3000
|
480
|
260
|
420
|
37
|
15
|
5.5
|
|
W11S-28×3500
|
320
|
25
|
28
|
3500
|
500
|
260
|
420
|
37
|
15
|
5.5
|
|
W11S-26×4000
|
320
|
22
|
26
|
4000
|
520
|
260
|
420
|
37
|
15
|
5.5
|
|
W11S-39×2500
|
380
|
35
|
39
|
2500
|
500
|
275
|
460
|
45
|
22
|
5.5
|
|
W11S-35×3000
|
380
|
32
|
35
|
3000
|
510
|
275
|
460
|
45
|
22
|
5.5
|
|
W11S-32×3500
|
380
|
28
|
32
|
3500
|
530
|
275
|
460
|
45
|
22
|
5.5
|
|
W11S-30×4000
|
380
|
25
|
30
|
4000
|
550
|
275
|
460
|
45
|
22
|
5.5
|
|
W11S-43×2500
|
430
|
40
|
43
|
2500
|
520
|
290
|
500
|
55
|
22
|
7.5
|
|
W11S-38×3000
|
430
|
35
|
38
|
3000
|
540
|
290
|
500
|
55
|
22
|
7.5
|
|
W11S-36×3500
|
430
|
30
|
36
|
3500
|
560
|
290
|
500
|
55
|
22
|
7.5
|
|
W11S-32×4000
|
430
|
28
|
32
|
4000
|
580
|
290
|
500
|
55
|
22
|
7.5
|
|
W11STNC-15×2000 --
W11STNC-32×4000 |
同 上
|
|||||||||
|
W11ST&BNC-15×2000 --
W11ST&BNC-32×4000 |
同 上
|
|||||||||
